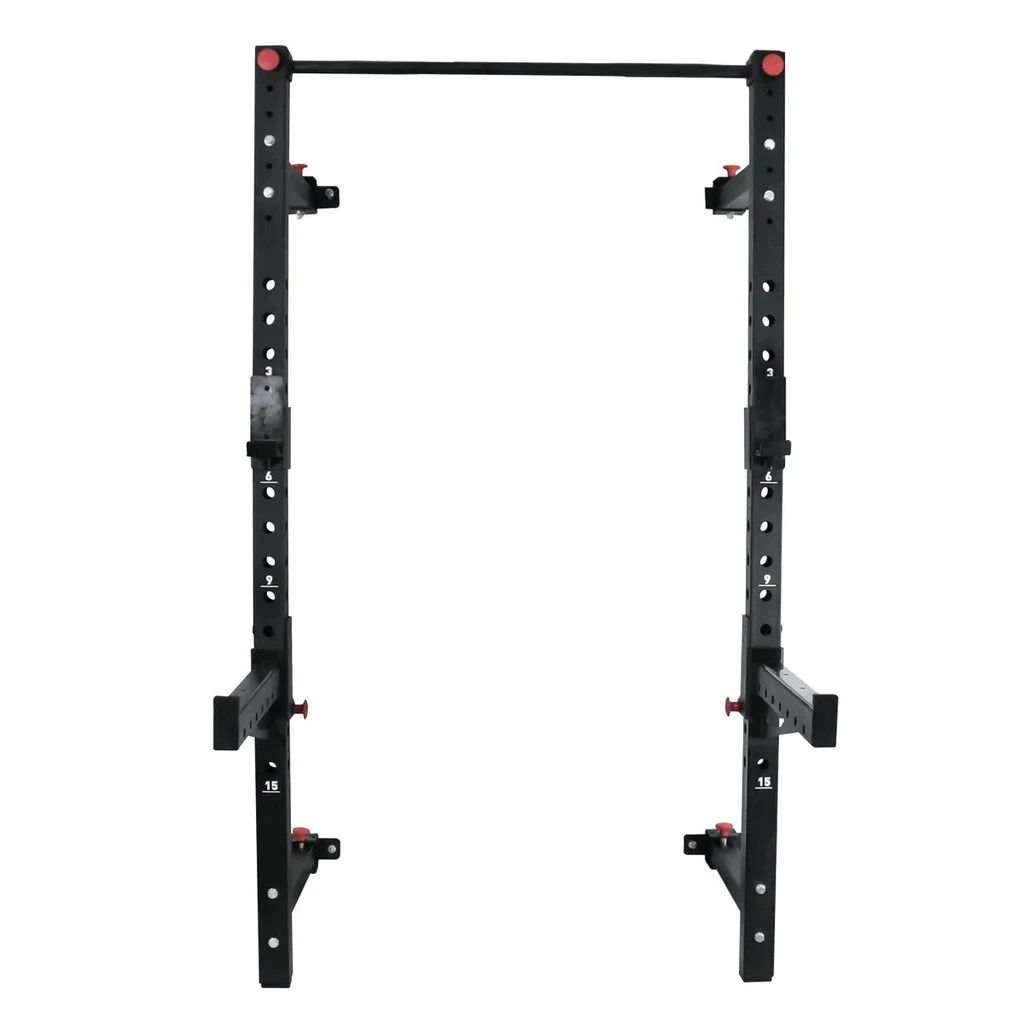

SMAI – Wall Mounted Folding Rig

Ideal solution for those that don’t have room to sacrifice within their Studio or home. Fully functional squat rack/Pull up rig that can be installed onto any structural wall (structural wall required) simply swing it out, lock it into place while you train and swing it back against the wall and lock into place to store it away without sacrificing any space within your studio.

Fully functional pull up/squat rig with Adjustable J-Hooks, squat safety rails and pull-up bar  (all these components are height adjustable)

Superior Steel We know racks and rigs are a serious investment, so we make sure they’re made tough. Constructed from high gauge steel tubing that has a minimum wall thickness of 5mm it means they can take a beating in any commercial premise. It is then coated in a durable, texture powder coat and the racks and rigs come with a lifetime structural warranty.

Tested All components have been tested by our in-house engineers to determine the static loading limit under intense computer simulations to exceed industry standards for commercial equipment.

Clearance Please note you need a minimum ceiling clearance of 2.65m for installation. It is recommended around 2.9m to 3m ceiling clearance to ensure full functionality overhead for barbell work and bar muscle ups. Allow at least 1m clearance either side for comfortable access when changing barbell plates.

Installation The half-cell options require wall mounting, so there must be access to a load bearing surface in order to attach onto the wall. SMAI uprights have the allowance for fixing to a floor or structural surface using M16 size dynabolts / concrete screws. Each upright requires three screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring.

Total Unit Measurement (with squatting arms)

• Width: 1440mm
• Depth: 960mm (off the wall)
• Depth: 430mm (From wall to upright only)
• Height: 2400mm



Please note: This product is not a part of our X-Frame series, and will not hold other attachments which are a part of this range
